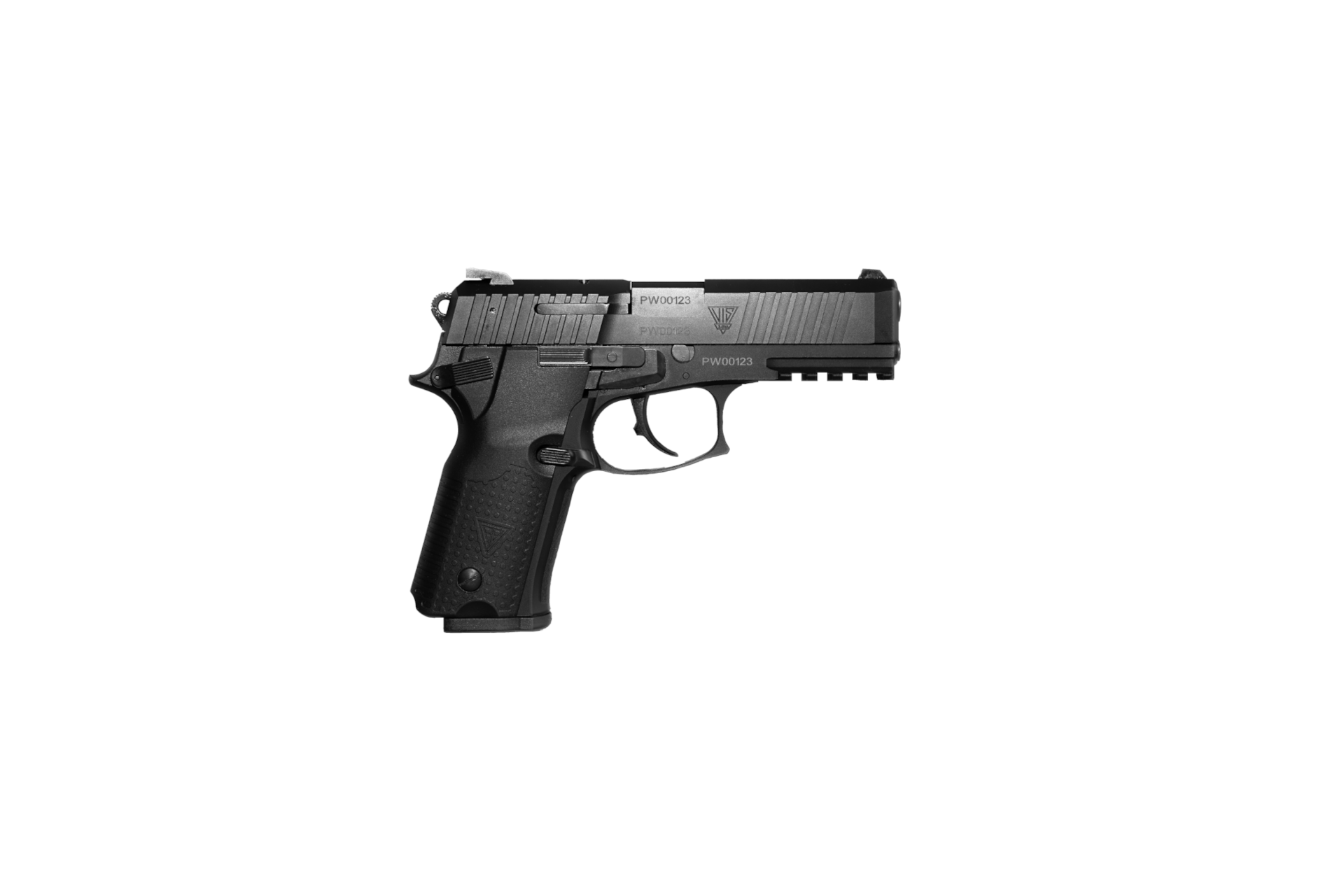

VIS 100 cal. 9 x 19 MM

The self-loading pistol chambered in 9x19mm is a personal weapon designed for the military, police forces, prison services, border guards, property protection services, and others.

Full Description
Technical Data

The self-loading pistol chambered in 9x19mm is a personal weapon designed for the military, police forces, prison services, border guards, property protection services, and others. It is used for combat and self-defense at short distances (up to approximately 50 m). It is a weapon with a movable barrel and a locked breech, operating on the principle of short recoil of the barrel, locked in the ejection port of the slide by tilting. The pistol features an ergonomic grip with a Picatinny rail according to MIL Std 1913 located in its front part, below the barrel, designed for mounting a laser target designator or tactical lighting, enhancing its functionality. It can be used by both right- and left-handed shooters. It is characterized by low weight, compact size, good maneuverability for firing, quick deployment, and a high level of safety. It has protection against accidental and premature firing. It has a single-action/double-action trigger mechanism (SA/DA) with an external hammer. The pistol is equipped with open-contrast and illuminated sights, enabling shooting in low-light conditions.

Technical data:

Caliber: 9x19mm

Operating principle: Short recoil of the barrel, l

Trigger system: Single Action / Double Action

Trigger pull force: SA/DA 25N/50N

Trigger travel:approximately 14 mm

Magazine capacity: 15 rounds

DIMENSIONS:

Height: 136 mm without magazine

142 mm with magazine

Length: 197 mm

Width: 32 mm

Barrel length: 110 mm

Barrel twist rate: 250 mm

Sight line length: 156 mm

Weights:

Pistol weight without magazine: 695 g

Empty magazine weight: 90 g

Muzzle velocity: V₀ ~360 m/s

Muzzle energy: E₀ ~518 J

Effective range: approximately 2000 m

Tactical range: approximately 150 m

Grouping at 25 m: ≤ 14 cm

Average point of impact deviation:≤ 5 cm

Sights: Open, notch and post, adjusted for 25 m, contrast/tritium

Operating principle: Short recoil of the barrel, locked by tilting in the ejection port of the slide

Safety: Automatic, internal firing pin block controlled by the trigger. - Decocker. - Firing pin safety.

Trigger mechanism:SA/DA (with external hammer)

User Manual VIS-100

The self-loading pistol chambered in 9x19mm is a personal weapon designed for the military, police forces, prison services, border guards, property protection services, and others. It is used for combat and self-defense at short distances (up to approximately 50 m). It is a weapon with a movable barrel and a locked breech, operating on the principle of short recoil of the barrel, locked in the ejection port of the slide by tilting. The pistol features an ergonomic grip with a Picatinny rail according to MIL Std 1913 located in its front part, below the barrel, designed for mounting a laser target designator or tactical lighting, enhancing its functionality. It can be used by both right- and left-handed shooters. It is characterized by low weight, compact size, good maneuverability for firing, quick deployment, and a high level of safety. It has protection against accidental and premature firing. It has a single-action/double-action trigger mechanism (SA/DA) with an external hammer. The pistol is equipped with open-contrast and illuminated sights, enabling shooting in low-light conditions.

Download
